All the pictures, movements, animations, and transitions you see on your monitor is because of the graphics card present on your system. The graphics card renders images on the monitor by converting the data into monitor understandable signals. At times, gamers, people using 3D modeling software and other graphic-intensive applications need to know how to check graphics card in Windows 10.

A normal user doesn’t need to know graphic card specifications as normal work can be carried out by built-in graphic cards provided by the manufacturer. However, the set of users mentioned above need graphics cards with specific specifications so that they can work smoothly.

How to Check Graphics Card information on your Windows 10?

Many new games on Windows cannot be played without a powerful GPU (Graphics Processing Unit). For all such reasons, one should know different ways on how to check graphics card in Windows systems, so that they can upgrade when the need arises.

There are different ways one can check graphics card specifications on his/her Windows 10 system. You can also opt for third-party tools to check information for you. You can check out the below ways and get information related to your graphics card and GPU easily.

1. Use the Settings App

You can learn how to check graphics card in Windows 10, the graphics card manufacturer, and model via the Settings app.

To do so, press Windows key + I to open Settings and click on System.

Now, from the left panel, go to Display. In Display settings, scroll down and click on Advanced display settings.

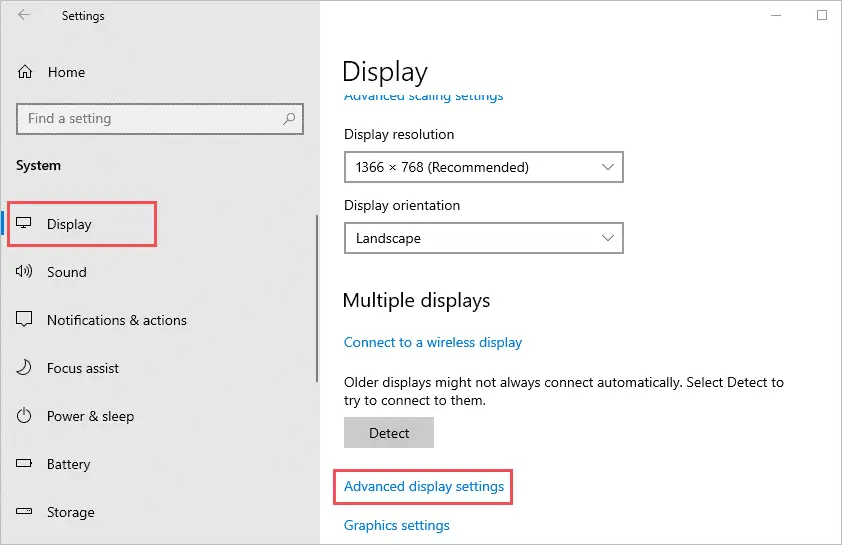

Open Advanced display settings
Open Advanced display settings

You can now see the manufacturer name and model number in Display information.

Check Display information to check graphics card windows 10
Display information

If you are not comfortable with the Settings app, check out other ways on how to check graphics card in Windows 10.

2. Use System Information

If you need more detailed information on the graphics card, which includes the RAM size, then you can look into system information.

Search for System Information in the search menu and open System Information App from the search results.

From the left panel expand, Components and then click on Display.

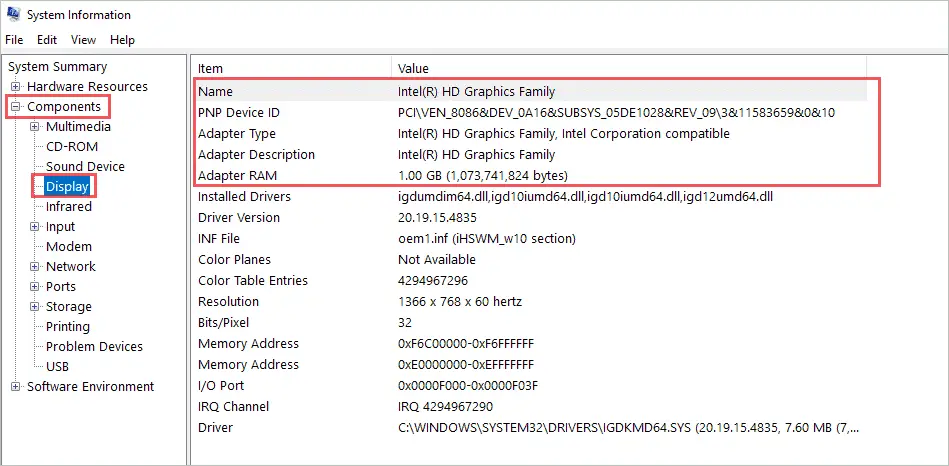

System information for how to check graphics card windows 10
Graphics card information in System information

You will now see the name, type, description, and RAM of the graphics card installed on your system.

3. Use Device Manager to check Graphic Card in Windows 10

Another way to learn how to check graphics card in Windows 10 is by using the Device Manager. Device Manager is a tool for all the settings related to device drivers in Windows 10. This way won’t show you information like RAM size, but you can easily know the model number and manufacturer name.

Press Windows key + X to open Device Manager via a quick link menu. Once the Device Manager opens, expand Display adapters.

Graphic card under Display adapters
Graphic card under Display adapters

You will see the name of the graphics card present on your device under the display adapters.

4. Use Task Manager

The task manager can also give you graphics card information in Windows 10. It can tell you dedicated and shared GPU memory along with usage statistics.

Press Ctrl + Shift + Esc to open the task manager. In the task manager, navigate to the Performance tab and then go to the GPU from the left panel.

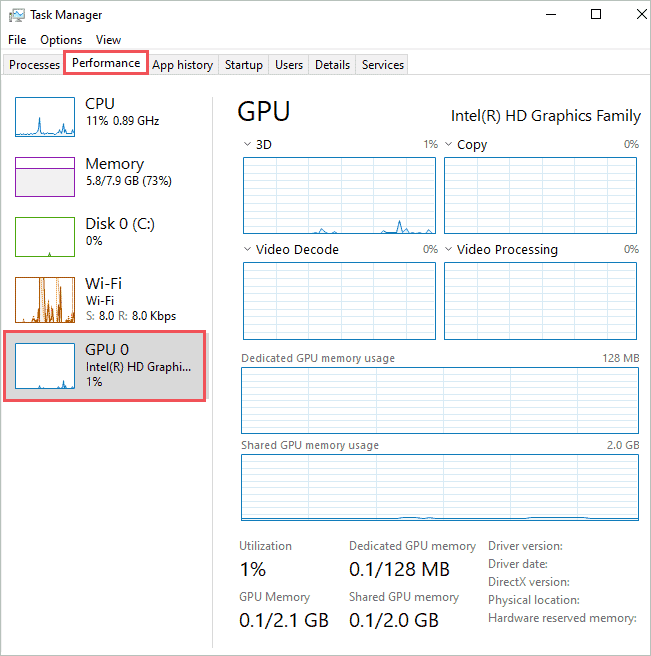

GPU in Task Manager
GPU information

You will see all the information related to the graphics card here. This includes name, model number, GPU memory, and utilization. If you are facing a high GPU utilization issue, then you can know about it through this task manager window.

5. Use DirectX Diagnostic Tool

DirectX Diagnostic tool can help you get all the information related to display adapters. To open this tool, search dxdiag in the search and open the first search result.

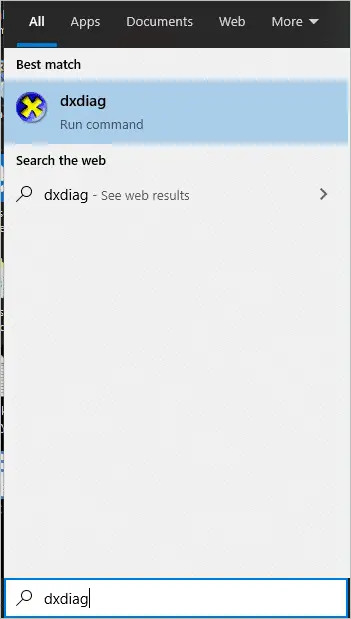

dxdiag command
Open dxdiag

Alternatively, you can open Run by pressing Windows key + R and type dxdiag there to open the DirectX Diagnostic Tool.

Once this tool opens, go to the Display tab, and in the Device section, you can learn how to check graphics card in Windows 10.

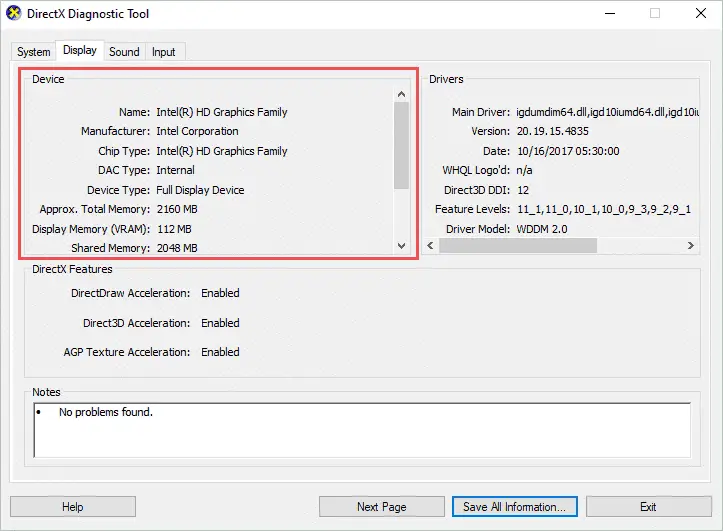

Graphics card information on DirectX Diagnostic tool
Graphics card information on DirectX Diagnostic tool

You can also save this information in text file format and access all the information related to the graphics card without opening any tools or apps.

6. Use Control Panel to check Graphics Card in Windows 10

You can access information via the Control Panel if you have an NVIDIA graphics card.

Search for the control panel in the search menu and open it from the search results. Next, click on Hardware and Sound.

From the left panel, open NVIDIA Control Panel. In the left bottom, you will see System Information, click on it.

Nvdia HDCP Status on System Information
Click on System Information

Next, click on the Display tab, and there you can get Graphics card information.

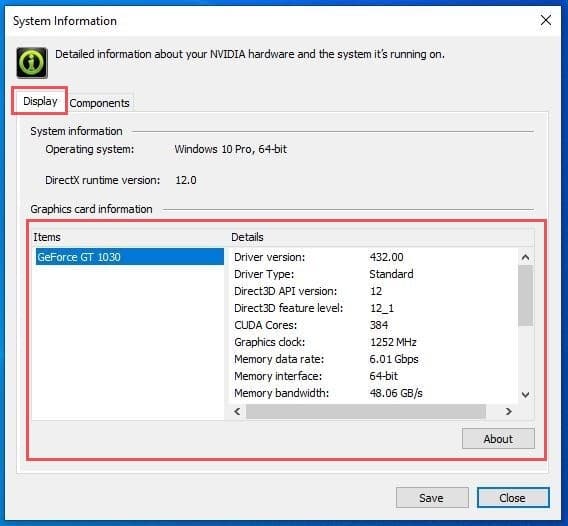

how to check graphics card windows 10 with Nvdia Display Status
Graphics card information in NVIDIA control panel

You can now see all the information related to the graphics card under Graphics card information.

7. Use Third-Party Tools

Many users also use third-party tools to learn how to check graphics card in Windows 10.

The tools help you with system-related information, including hardware and software. We have listed the top 3 tools below.

TechPowerUp GPU-Z

how to check graphics card windows 10 with GPU Z

TechPowerUp GPU-Z can provide you with all the important information related to graphics processors and video cards. It is a lightweight tool that does not require installation.

The tool works with all the versions of Windows right from XP to 10. You can use this tool without any cost for personal as well as commercial purposes.

Download TechPowerUp GPU-Z

Belarc Advisor

Belarc Advisor is one of the best tools that will assist you to check graphics card in Windows 10.

It not only provides system information, but also network inventory, any missing Microsoft hotfixes, anti-virus status, and security benchmarks related information. It is available for Windows XP to Windows 10.

The information is displayed on a web browser. You can download a free copy of Belarc Advisor from their official site. However, it is not allowed to use this tool for commercial purposes. You can find the details on their website related to commercial use.

Download Belarc Advisor

Speccy

how to check graphics card windows 10 through Speccy

Speccy can give you all the information related to your graphics card as well as other hardware components. There is detailed reporting so that you can decide on upgrades. You can use the free version of this tool to get the information.

If you wish to have automatic updates and premium support, then you can opt for the Professional version. The pro version costs you USD 19.95.

Download Speccy here

Conclusion

The ways mentioned above help you know how to check graphics card in Windows 10 using different ways. Different ways provide different information to you. If you wish to know detailed information, then you need to use a task manager, DirectX Diagnostic tool, System information, or some third-party software.

However, if the name and model number is the only information you need about the graphics card, then you can use the Settings app and Device Manager. Once you know the details, upgrading or updating becomes easy.
